4-IN-1 VERSATILITY
A 4-IN-1 solution that blends panoramic solution, CBCT imaging, 3D model scanning and optional cephalometric imaging.
75 MICRON PRECISION
75 micron CBCT resolution lets you visualize the tiniest clinical details and is perfectly suited for endodontic indications.
ARTIFACT-FREE IMAGES
Game-changing CS MAR technology with unique live comparison automatically reduces metal artifacts. This helps you confirm diagnosis and reduces the risk of misinterpretation.
Selectable field of view
With up to six fields of view, including full arch scanning, the CS 8200 3D Access covers virtually any need. You can obtain the ideal image for each individual exam, at the right dose.
INTUITIVE USER INTERFACE

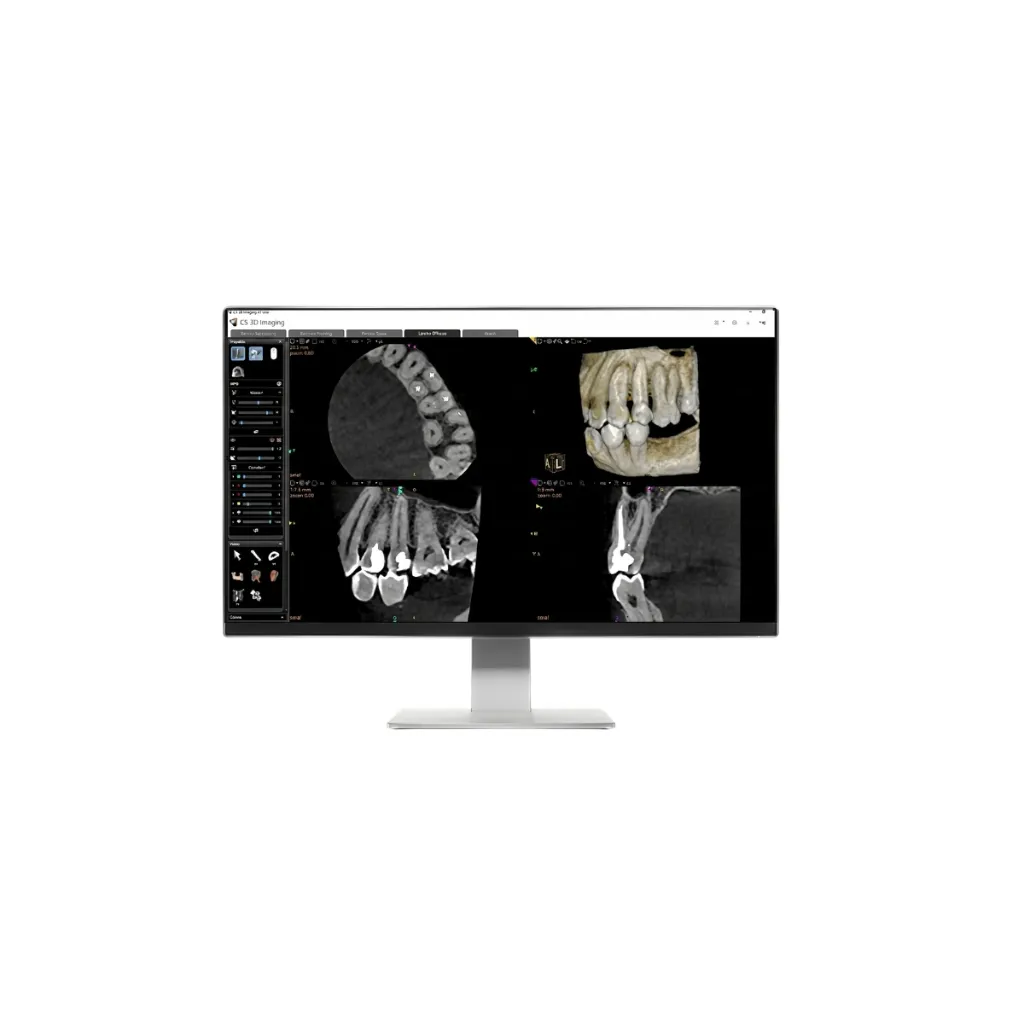

The intuitive user interface is designed to facilitate exam setup. Settings are all on the same screen for a faster workflow.
LOW-DOSE IMAGING
The low-dose mode delivers high-quality 3D images at the same or lower dose as a standard panoramic exam for safer examinations.
RAZOR-SHARP PANORAMIC IMAGES
Tomosharp algorithm delivers ultra-sharp panoramic images instantly, while the low-dose panoramic mode reduces the dose by up to 50%.
ULTRA-COMPACT AND SMART DESIGN

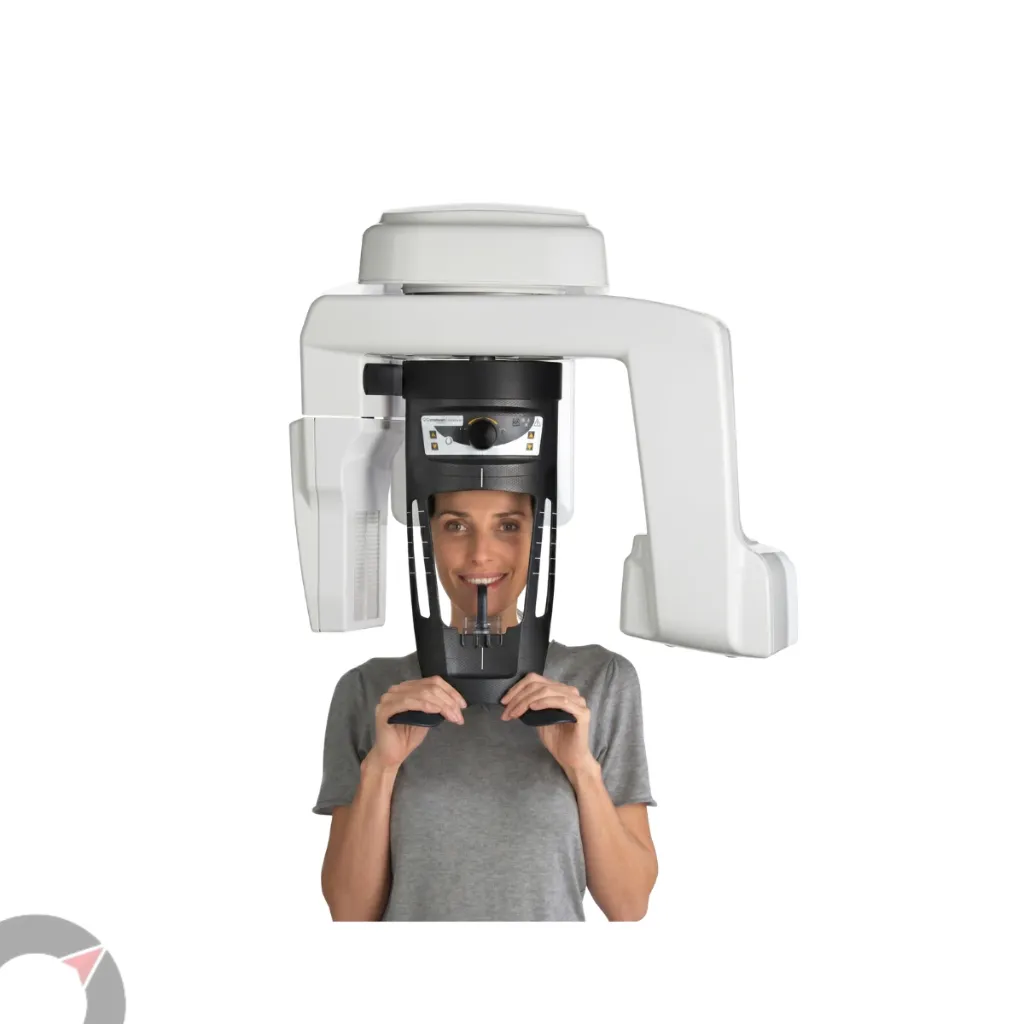

Compact enough to fit into tight spaces, the CS 8200 3D features the most intuitive workflow and laser-free face-to-face positioning.
OPEN SOLUTION
The CS 8200 3D Access is built on an open platform meaning you can easily connect CS Imaging software with leading intraoral scanners for fast, seamless workflow.

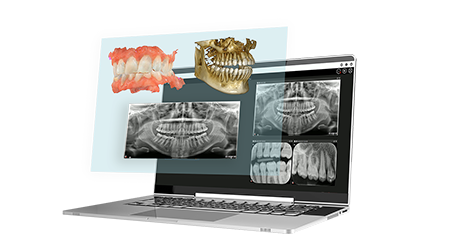

POWERED BY CS IMAGING VERSION 8
Our software connects all our imaging and CAD/CAM technologies into one single platform—the first step to an effective digital workflow.
| Tube voltage | 60 – 90 kV | ||
| Tube current | 2 – 15 mA | ||
| Frequency | 140 kHz | ||
| Input voltage (AC) | 100 – 240 V – 50/60 Hz | ||
| Minimum required space | Without ceph arm: 1200 (L) × 1400 (D) × 2400 (H) mm With ceph arm: 2000 (L) × 1400 (D) × 2400 (H) mm |
||
| Weight | Without ceph arm: 92 kg (202 lb.) With ceph arm: 127 kg (280 lb.) |
||
| Modality specifications | |||
| Panoramic Modality | Cephalometric Modality | 3D Modality | |
| Sensor technology | CMOS | CMOS | CMOS |
| Image field (2D) / Field of view (3D) | 6.4 × 140 mm (Adult) 6.4 × 120 mm (Pediatric) |
6.4 × 263.3 mm | CS 8200 3D Access: 4 × 4 – 5 × 5 – 8 × 5 – 8 × 9 – 10 × 5 – 10 × 10 |
| Gray scale | 16384 – 14 bits | 16384 – 14 bits | 16384 – 14 bits |
| Magnification | 1.2 | 1.13 | 1.4 |
| Radiological exam options | Full panoramic, segmented panoramic, maxillary sinus, LA TMJ × 2, LA TMJ × 4 | Lateral, frontal AP or PA, oblique, submento-vertex, carpus (optional) | Full, upper or lower jaw – Full, upper or lower molar – Occlusion – Teeth |
| Exposure time | 2 to 14 seconds | 2.9 to 11 seconds | CS 8200 3D Access: 6s to 15s |
CS 8200 3D Access
Enter a world of crystal-clear 3D images with the CS 8200 3D Access—a CBCT system that is state-of-the-art, but intuitive and easy to use.
CS 8200 3D Family
CS 8200 3D FAMILY
Using the CS 8200 3D Access Recorded Class
This recorded class demonstrates how to acquire images using the CS 8200 3D Access system.
Having the CS 8200 3D Access in the practice means better case preparation and planning. It also lets us manage treatment time more efficiently, which in turn makes the practice more profitable.
